GLADI8TOR

PRED8TOR

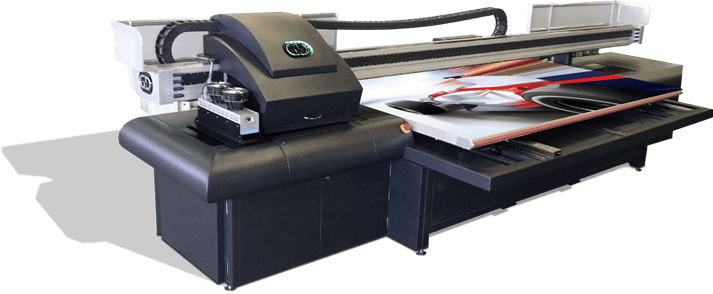

DOMIN8TOR

SL8TE

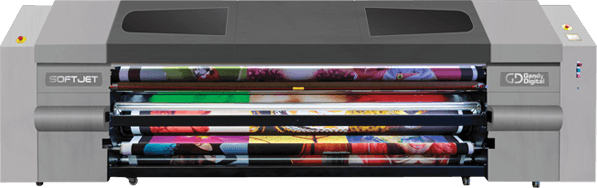

SOFTJET

TERMIN8TOR

GLADI8TOR

Details: Category: PRODUCTS; Published: Wednesday, 08 July 2015 14:01; Written by Super User; Hits: 12894

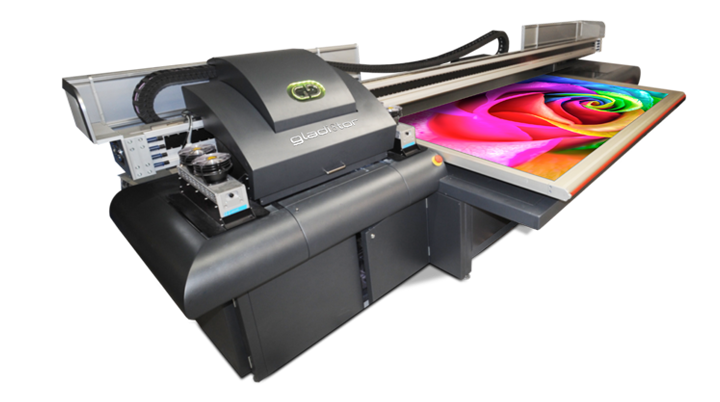

GLADI8TOR

The Gladi8tor is Gandy’s new development based on it’s predecessors, the Pred8tor and Domin8tor which have been coming off the production line at Gandy Digital’s factory in Canada for over 4 years. The most reliable high resolution, large format digital UV flatbed printer in the market giving exceptional value that just got better with the introduction of the Gladi8tor.

The new Gladi8tor comes with 2 main options. The first offering smooth 6 color (CMYK&LM&LC) quality plus double white solving the white density hurdle. Or double CMYK for twice the speed making the Gladi8tor the fastest printer in its category topping 240sqm. We guarantee that you will be surprised with the quality of the samples printed at 240sqm.

The Gladi8tor like the Pred8tor and Domin8tor is a True UV flatbed printer with a vacuum table. The Gladi8tor comes in 2 print sizes. The Gladi8tor 1224 has a print size of 1.22m (4ft) X 2.44m ( 8ft) and the Gladi8tor 2030 has a print size of 2m (6ft6in) X 3.05m (10ft). The Gladi8tor 1224 also comes with a 2.44m ( 8ft) wide roll-to-roll option that achieves the same print quality without compromising true flatbed capability.

Print quality and speed on the Gladi8tor is driven by the inline ‘Blade’ print head configuration system, printing 25.4cm (10 inch) wide swath using 6-picoliter variable dot Ricoh print heads. This system eliminates head to head alignment and gives incredible sharp images.

The Gladi8tor using the blade system allows 8 blades to print with accuracy either with higher quality smoother photographic images or with dramatically higher speeds. The Gladi8tor also gives great flexibility that allows you to start with a 4 color system and upgrade easily to 6 color or double speed. Call us to discuss all the options.

You can easily print materials with different thicknesses as the head height adjusts automatically without the need to manually check it (maximum media thickness 50mm / 2”).

The new ‘layered’ printing option makes printing multi-layered colored images and white, simple with a onetime setup and print process. Now you can do backlit images sandwiching white or doubled sided banners with white and black sandwiched between images.

Cleaning is much easier with the fully automated built-in head blotting system, no need to wipe by hand.

Operation of the Gladi8tor is simple with Gandy Digital’s own touch and drag GUI (Graphical User Interface). This is a true mobile operation device enabling step and repeat, rotate, delete ripped images, create jobs allowing interactive trouble shooting via online diagnostic. Profiles and software can also be updated with the online system.

Gandy Digital has a Crash sensor available on the Gladi8tor that truely protects printheads not only against large objects but also against film that can get under the printhead carriage. This option is a true working innovation.

Gandy Digital has innovated a UV ink that gives excellent adhesion to many plastics including acrylic. And on top of that ink usage is minimum making your production costs the lowest with the Gladi8tor. Gandy Digital’s Gladi8tor is the most advanced and groundbreaking Grand Format Digital Printer in the industry today

We are the leader of innovative digital printing technology and have a proven track record. See for yourself and book a demo with one of our representatives.

PRED8TOR

Details: Category: PRODUCTS; Published: Wednesday, 08 July 2015 14:01; Written by Super User; Hits: 12139

PRED8TOR

THE NEXT GENERATION OF GRAND FORMAT DIGITAL PRINTING

The Pred8tor is a True UV flatbed with a roll to roll option, which achieves the same print quality on all roll materials without compromising true flatbed capability. The Pred8tor will print high resolution 900 dpi photographic quality with inline white or clear, and will be the first commercially available high speed UV true flatbed printer.

The Pred8tor is a True UV flatbed with a roll to roll option. The Pred8tor achieves the same print quality on all roll materials without compromising true flatbed capability. The Pred8tor will print high resolution 900 dpi photographic quality with inline white or clear, and will be the first commercially available high speed UV true flatbed printer. Color configuration:C,M,Y,K,LtC,LtM,white,clear / (white,white). 8 blades.

Gandy Digital's 'Pred8tor' will print a 1.22m (4ft) x 2.44m (8ft) sheet of rigid material (up to 50mm (2 inches) thick). Roll to Roll printing is also achieved with the optional rewind unit and will print at speed and high quality on all flexible materials with a roll width up to 2.44m (8ft) and up to 40cm (16 inches) diameter rolls, including heavy vinyl's and mesh.

The Pred8tor can also accommodate rigid materials larger than the bed size with the Print Extension Table option. You can print up to 2.44m (8ft) wide and any length rigid material. For example you can now print one piece of rigid material that is 2.44m (8ft) wide by 10m (33ft) long. You can easily print materials with different thicknesses as the head height adjusts automatically without the need to manually check it. Print quality and speed on the Pred8tor are driven by the inline 'Blade' head configuration system. The pred8tor will print a 25cm (10 inch) wide swath using 6 picoliter variable dot. Cleaning is made much easier with the fully automatic built in head cleaning system.

Operation of the Pred8tor is made simple with the use of Gandy Digital's own touch and drag GUImaking it a true mobile operation; step and repeat, rotate, delete ripped images, create jobs and more. Profiles and software updates are also updated with the online system, 'no more CD's'. Gandy Digital's 'Pred8tor' is the most advanced and ground breaking Grand Format Digital Printer in the industry today.

Rips

The Pred8tor works with all major suppliers of RIP software intergrating seamlessly with your existing production department workflow. Please contact the RIP manufacturer for options, support and pricing.

Print driver specifications

If you are a raster image process (RIP) manufacturer and would like to add the Pred8tor to your Grand Format print driver list please contact : This email address is being protected from spambots. You need JavaScript enabled to view it. for further details. With 30+ years of digital printing technology and proven track record of consistently being at the forefront of the Large Format Digital Print Industry, you'll want to see for yourself why we lead the way.
